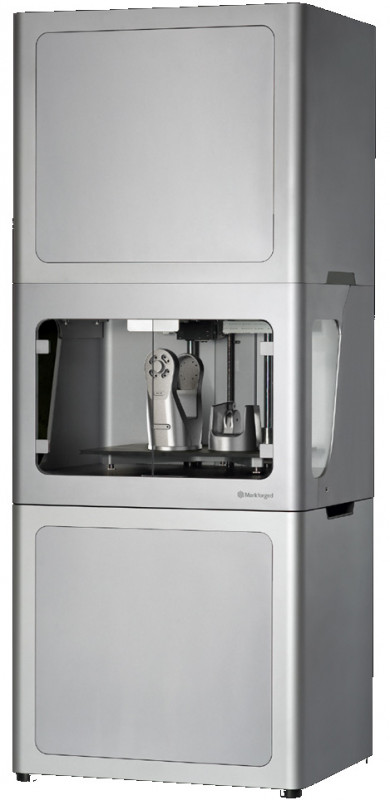

The Metal X is a 3D printer that prints metal powder bound in a plastic matrix to eliminate safety risks associated with traditional metal 3D printing methods while enabling new features like close-cell infill for reduced part weight and cost.
Features
- Software
- Eiger Cloud
- Printer Properties
- Process
- Atomic Diffusion Additive Manufacturing (ADAM)
- Build Volume
- 300 x 220 x 180 mm
- Print Chamber
- Heated
- Print Bed
- Heated, vacuum-sealed print sheet, auto bed leveling
- Print System
- Two nozzles — Metal material and release material
- Materials
- Stainless steel (17-4 PH, 316L*), Tool steel (H13, A2, D2), Inconel 625, Copper, Titanium-6Al-4V*
- Metal Material
- Release Material
- Ceramic (consumed at 1:10 ratio to metal spools, on average) Media (Spools) Filament fed, bound powder
- Part Properties
- Max Part Size
- 250 x 183 x 150 mm
- Supports
- Metal material with ceramic release layer
- Layer Height
- 50µm and 125µm post-sinter
