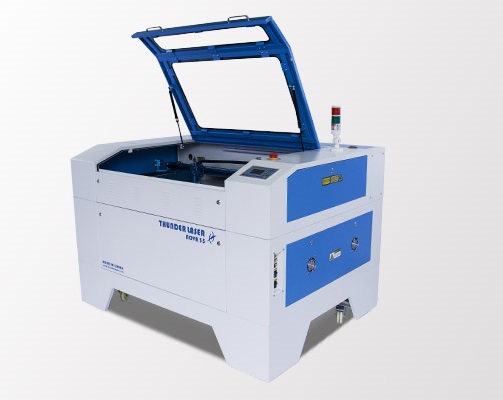

The NOVA laser cutter carries all the best functions such as hybrid servo motor, excellent engraving quality with high resolution, etc. Users can also choose RF tube to reach an even higher cutting and engraving quality, and we also add much more user friendly designs to this excellent series.
Resources
Features
- Laser Tube Wattage
- 100-130Watt
- Laser Type
- Sealed Co2 Glass Laser Tube
- Cooling
- Water Cooled
- Work Area
- 1300x900mm(51.2”x35.4”)
- Max Part Size (WxLxH)
- Front door closed
- 1400x1030x250mm(55.1” x 40.6” x9.0″)
- Pass-through door
- 1400x∞x20mm(55.1” x ∞” x0.8")
- Table Size
- 1400x1030mm(55.1” x40.6”)
- Z Axis Height
- 230mm(9.1")
- Dimensions(WxDxH)
- 1900x1405x1040mm(74.8” x 55.3” x40.9”)
- Motion Control System
- High-Speed Servo Motors
- Maximum Speed
- 1000mm/S(39.4IPS)
- Speed and Power Control (engraving depth)
- Computer or manually controlled speed and power from 0-100%. Vector color mapping sets speed and power settings using RGB color mapping.
- Operating Modes
- Optimized raster, vector, and combined mode
- Resolution(DPI)
- User controlled from 100 to 500DPI(standard laser head), up to 1000 DPI(HR head)
- Computer Interface
- Ethernet and USB Connection
- Compatible Operating Systems
- Windows XP/2000/Vista/7/8/10
